Examples Positioning Systems
Here are some configuration examples of our positioning systems:

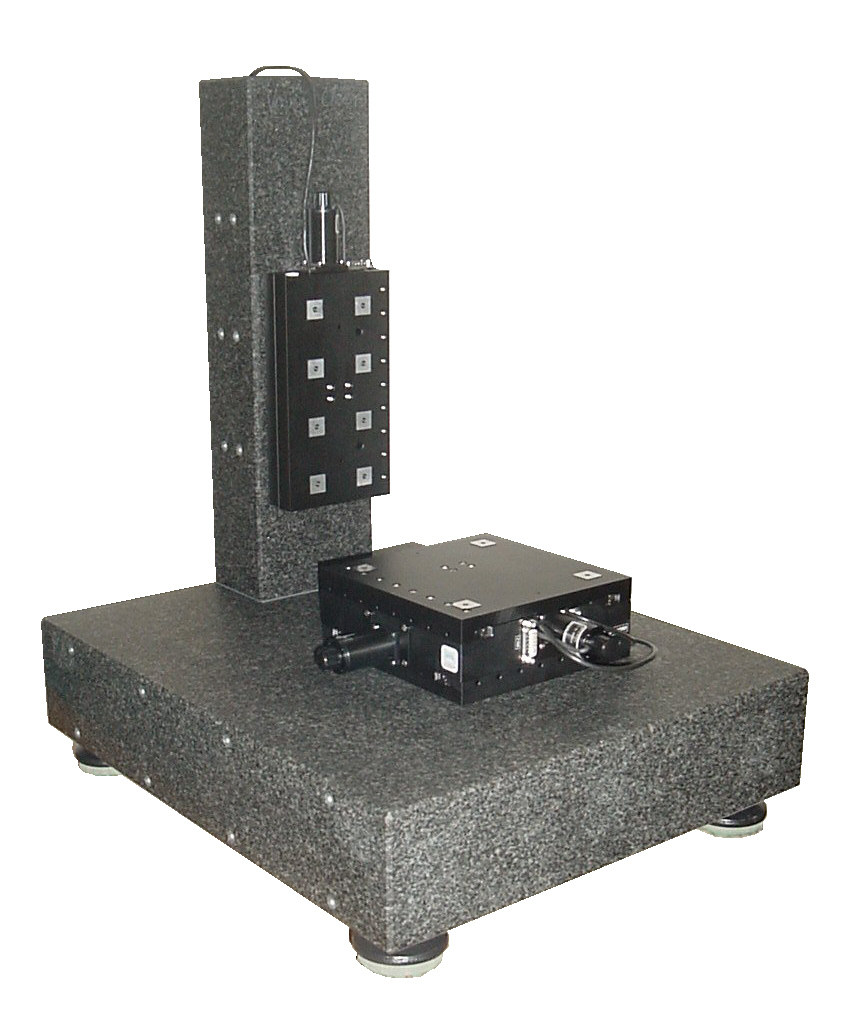

MS3-US01
3-axes positioning system
• Granite stand
• Movement range: 100 x 100 x 100 [mm]

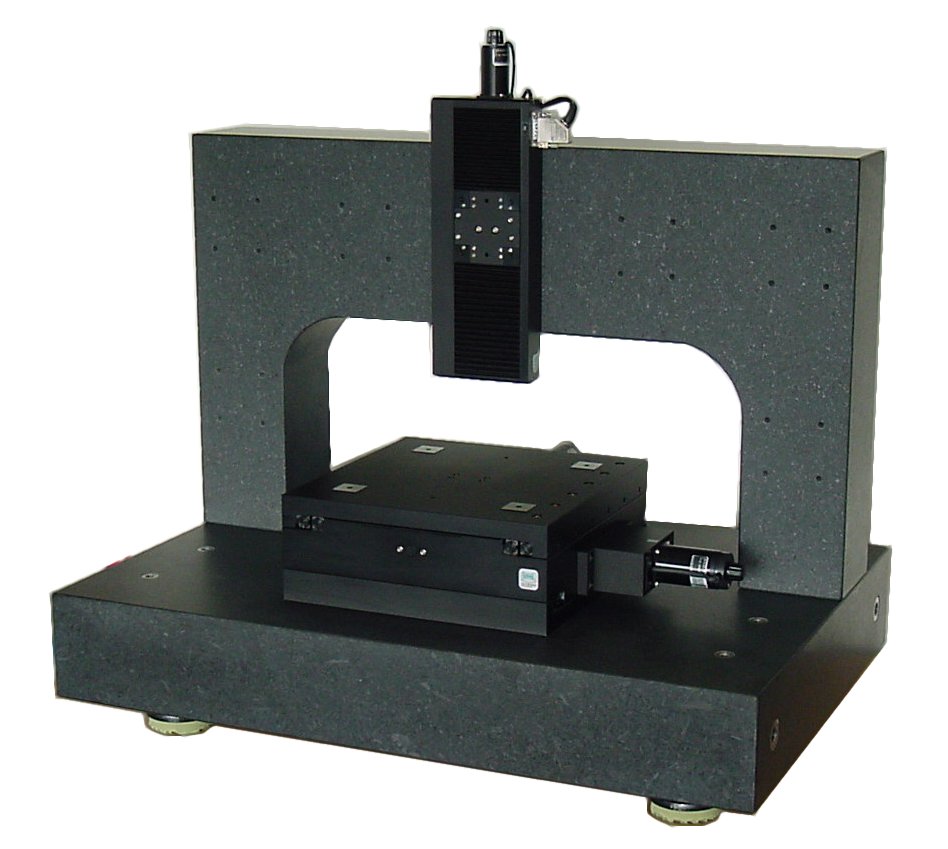

MS4-CA01
3-axes positioning system
• Granite base in portal design
• Movement range: 200 x 200 x 170 [mm]

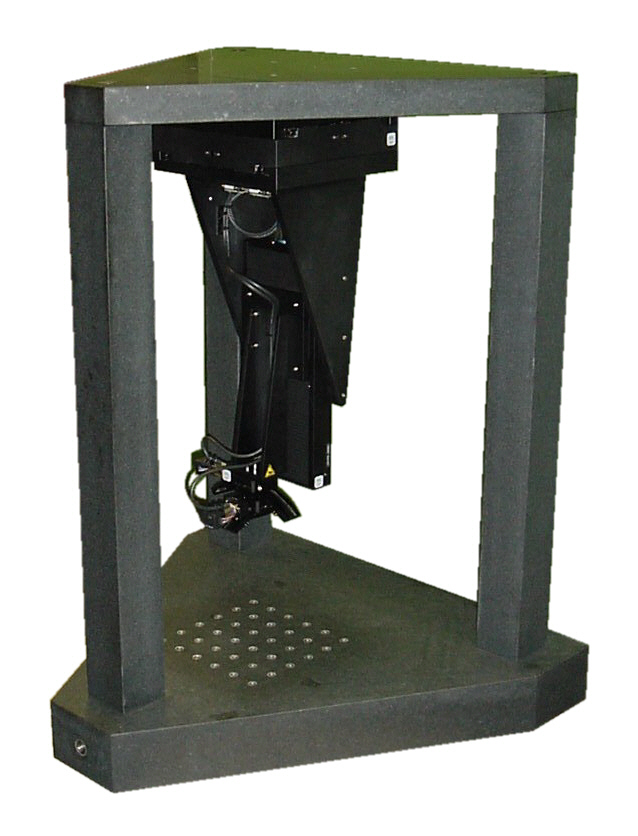

MS4-PT01
5-axes positioning system
• Setup with granite
• Movement range: 200 x 200 x 200 [mm]
and two +/- 35° Goniometer for a swiveling movement
