Linear Stages

Positioning Systems - Linear StagesThe fields of application for our linear stages LT and PT are widely spread.  They are used where highest requirements on straightness deviations, noise behaviour or positioning accuracy are demanded.

Stepping motors and backlash-free recirculating ball spindles are used as standard drive. Due to the usage of selective cross roller guides, highest accuracys are achieved which are recorded in the final check.

For the adaption and mounting of the linear stages, several threads in grid layout are provided so that they can be combined to multi-axis positioning systems.



Positioning Systems brochurePositioning Systems brochure download...




Linear Stages LT

Linear Stages LT

The linear stages of the LT series are especially designed to provide high accuracy in compact dimensions. The bellows are protecting the bearings, spindles and scales from external influences.

• normalized aluminium alloy, black anodized

• anti-backlash pre-loaded cross roller guides or profiled rail guides

• anti-backlash pre-loaded ball screw

Linear stage  Stroke (mm)  Drive  Measuring system
LT5
Linear Stage LT5
 50
 100
 170
 stepper motor
 DC motor
 none
 linear scale
 rotary encoder
LT6
Linear Stage LT6
 200
 300
 stepper motor
 stepper motor with brake
 DC motor
 none
 linear scale
 rotary encoder
LT8
Linear Stage LT8
 200
 300
 stepper motor
 stepper motor with brake
 none
 linear scale
 rotary encoder



Positioning Systems brochurePositioning Systems brochure download...




Linear Stages PT

Linear Stages PT

The linear stages of the PT series are especially designed to provide high accuracy in compact dimensions. The bearing design without runnung-in provides an even higher accuracy than the LT series. The linear stages of the PT series are particularly suitable as vertical axis.

• normalized aluminium alloy, black or pale anodized

• cross roller guides, anti-backlash pre-loaded

• ball screw, anti-backlash pre-loaded

 Linear stage
 Stroke (mm)  Drive  Measuring system
PT3 / M60
Linear Stage PT3
 25  DC motor

none
rotary encoder

PT4 / M80
Linear Stage PT4
 25  stepper motor
 DC motor
 none
 linear scale
 rotary encoder
PT5
Linear Stage PT5
 50
 stepper motor
 stepper motor with brake
 DC motor
 none
 linear scale
 rotary encoder
PT6

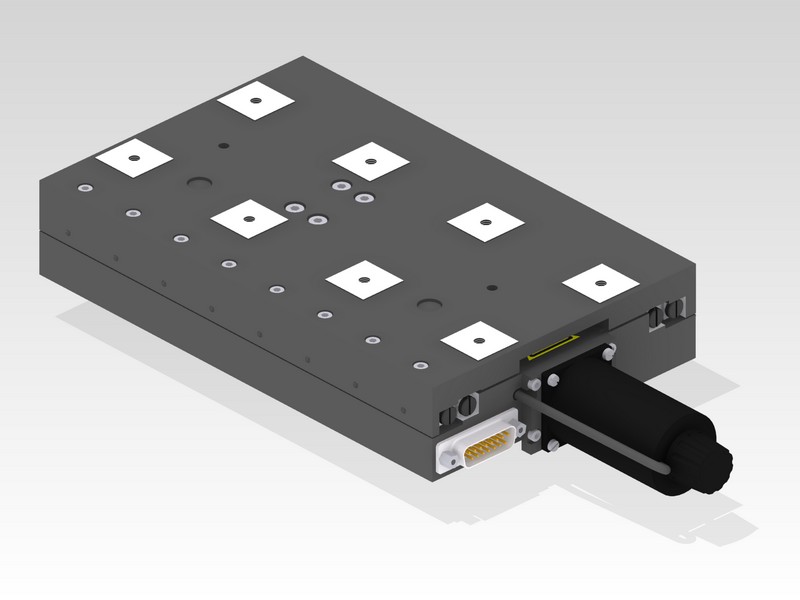

Linear Stage PT6
 100  stepper motor
 stepper motor with brake
 DC motor
 none
 linear scale
 rotary encoder
PT7

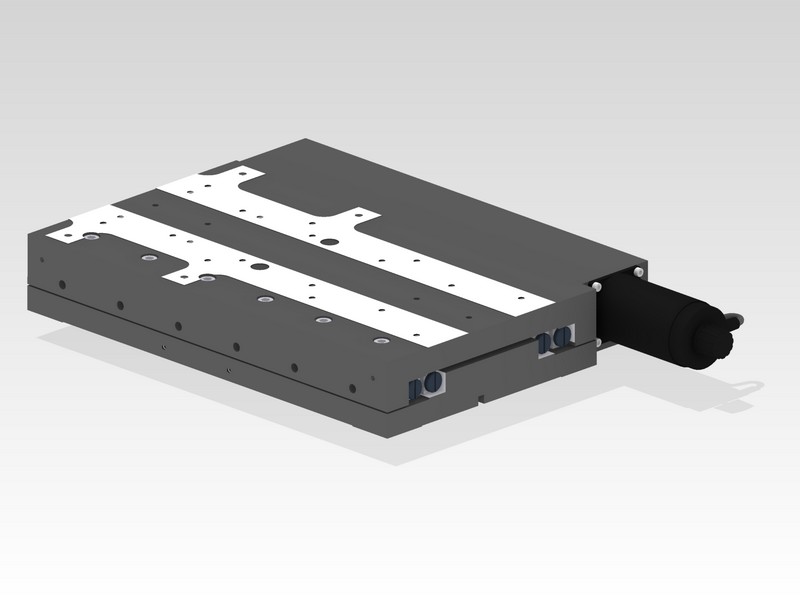

Linear Stage PT7
 150  stepper motor
 stepper motor with brake
 DC motor
 none
 linear scale
 rotary encoder
PT8
Linear Stage PT8

 200
 300

 stepper motor
 stepper motor with brake
 DC motor
 none
 linear scale
 rotary encoder
